Specifications:

• 3 x Stereo SENDs, 3 x Stereo RETURNs and Dry
• Adjust the effect level and dry level through each Knob
• Operates in 4 modes (Manual, MIDI PC, MIDI CC, MIDI PC+CC)
• 128 memory locations (when using MIDI PC)
• The levels values by 4 knobs are stored in 128 memories
• The 9V power input is converted to a +/-9 internally for any
• audio level
• Firmware update is available via MIDI.
• Heavy-duty footswitches
• Powered by 9VDC(center negative) 185mA
• Dimensions : 168(W) x 110(D) x 70(H) mm
• 6.6(W) x 4.3(D) x 2.8(H) inches
• Weight : 670 g / 1.48 lb

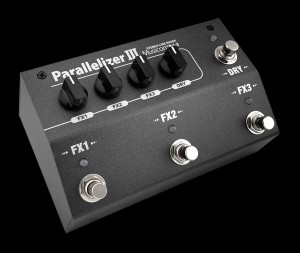

Parallelizer III is a parallel effect loop system that has 3 Stereo SENDs and can mix 3 Stereo RETURNs and dry signal.

You can preserve your dry signal by using the Parallelizer III, which can result in loss of dry signal when using the digital effect pedals or when connecting the effect pedals in series.

The audio signal flow of the Parallelizer III is all designed as an analog circuit. Also, components used for internal buffers, mixer circuits, etc. are high quality.

It has the MIDI IN function, which allows you to control the on/off function of the dry and each wet signal via external MIDI pedal.

The level values by the four knobs are stored in 128 memories and will be recalled upon receiving a MIDI Program Change message.
